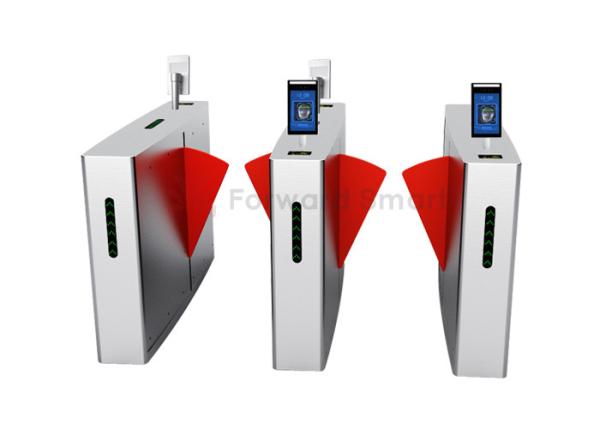

Face recognition access control anti-pinch glass flap turnstile gate
Product Description
Turnstile gate:
1.Swing arm anti-collision,you can even kick the swing arm,very good quality.
2.Customer logo print on swing arm(optional,need more cost)
3.Box material:304 stainless steel(mirror effect material optional,need more cost)
4.Pass speed:30-50 persons/minute
5.swing arm length:280mm
6.swing arm speed:0.4s-1s
7.support input way: Two-side card reading, paper ticket, fingerprint, coins.
8.485 and TCP/IP communication port
9.workingtemperature:-15℃~+80℃
10.working humidity:≤95%
11.swing arm will close automatically when power off, open automatically when power on.
12.Anti-follow:after passing one people,if someone follow,turnstile will dead lock automatically and alarm
13.swing arm with light
14.voice prompt
Face Recognition machine"
1.Very good effect even under strong sunshine Support 30000 face database Accuracy:99.7%
2.camera:200W two cameras wide dynamic
3.RAM:2G DDR
4.ROM:8G FLASH
5.wireless:2.4G WIFI
6.bluetooth:4.0
7.network:100/1000M
8.Relay interface:support
9.Wiegand interface:support
10.Fill Light system:support
11.signal indicator:support
TECHNICAL SPECIFICATION.
| Model: | WQH-TS09(NA) |
| Materials: | #304 Stainless Steel |
| Power supply: | 110/220Vac, 50/60Hz |
| Logic voltage: | 24Vdc |
| Rated Power: | 80W |
| Operating temperature: | -45°C to +65°C |
| Interface: | RS485 |
| Relative humidity: | less 90% Non-condensing |
| Flow rate: | 30 passages/minute |
| Installation Environment: | Internal or external IP43 |
| Net weight: | 35 kg |
| Dimension: | 420*330*980mm |
| Arm Length: | 600mm |
| MCBF : | >500 Million Times |
| Approved Certificate: | ISO9001 & CE |
FAQ:
1. Can i have a sample for test?
Of course, welcome order sample.
2. Can I make customized size and design?
Yes,we warmly welcome your special request.Just send us drawing and tell the details,
perfect design and performance will be made out
3. How many types of turnstile can you provide?
We can provide all kinds of turnstile,such as tripod turnstile with semi-automatic
and fully automatic mode
flap barri with normal lane and handicap lane.
Flap turnstile also can be wide channel,800mm-900mm
4.What system do you have?
Standard door access control system,can swiping RFID/Mifare cards
Can use with Fingerprint, Face scanner machine
Electronic ticketing system,used in Scenic and Stadium,etc pay sites
Monitoring and management system,turnstile integrated with cctv,led,bar code,etc function
ESD System
