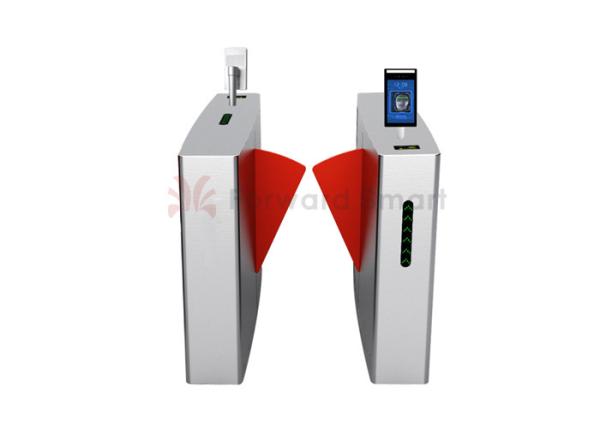

Waterproof Fingerprint Access Control Swinging Glass Barrier Turnstile Gate
| Product Name | Automatic Gate Barrier |
| Model Number | WQH-tr03 |
| Housing Size | 290*340*1010mm |
| Housing Material | Stainless Steel |
| Arm Material | Aluminum alloy |
| Arm Type | Straight |
| Arm Length | ≤6m |
| Gross Weight | 60kgs |
| Net Weight | 50kgs |
| Voltage | 220V±10, 110±10% |
| Motor Voltage | 220V |
| Protection Grade | IP65 |
| Rail up or down Time | 4 to 6 seconds |
| Rated Power | 60W |
| Working Temperature | '-45°C to +80°C |
| Operating Humidity | ≤90% non-condensing |
| Operation Lifespan | ≥500 million times |
| Frequency | 50 to 60Hz |
| Housing Color Keeping | 3-5 years |
| Housing Color | Different color available |
Features:
Easy installation and maintenance reduces your labor cost
Simple structure and no limit switch design ensures easy installation and maintenance which reduces your labor cost
Heavy-duty and simple-design housing
The housing adopts 1.6mm cold-rolled steel plate and static electricity sprayed anti-UV surface which is non-scale and unfading in 3-5 years, conformed to the IP65 dustproof and waterproof, simple design also decorates your premises
System automatically self-checks operation status and reports errors
System always automatically self-checks operation status and reports errors shown on LED tube of the controller
Sine lever drive mechanism ensures smooth landing of boom without shaking
The patented precise casting sine lever drive mechanism enables the boom arm moves from slow to fast when it starts, and fast to slow when it stops. This will effectively reduce the shaking of the boom arm and allay the burden of the electrical motor, so that the lifespan of the motor and mechanical components will be greatly prolonged.
Anti-collision protects boom arm
Anti-collision mechanism will protects the boom arm not to be damaged once boom arm was collided by a vehicle
Safety---Anti-hit by pressure wave resistance bounce
While moving down, arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable
Safety-----Anti-hit by Loop Detector (optional)
While barrier boom moving down, if a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately
Safety---Anti-hit by opening priority
If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by boom arm
Closing Priority
While arm moving up, the arm will immediately go down once a close command is given
Automatically close after the given time
Once this function is set “ON”, the barrier will automatically close after give time (1-90 seconds adjustable), if there is no vehicle passed after barrier open
Automatically close by loop detector (optional)
If loop detector is installed, after vehicle passed, the barrier will automatically closed once the loop input was triggered
